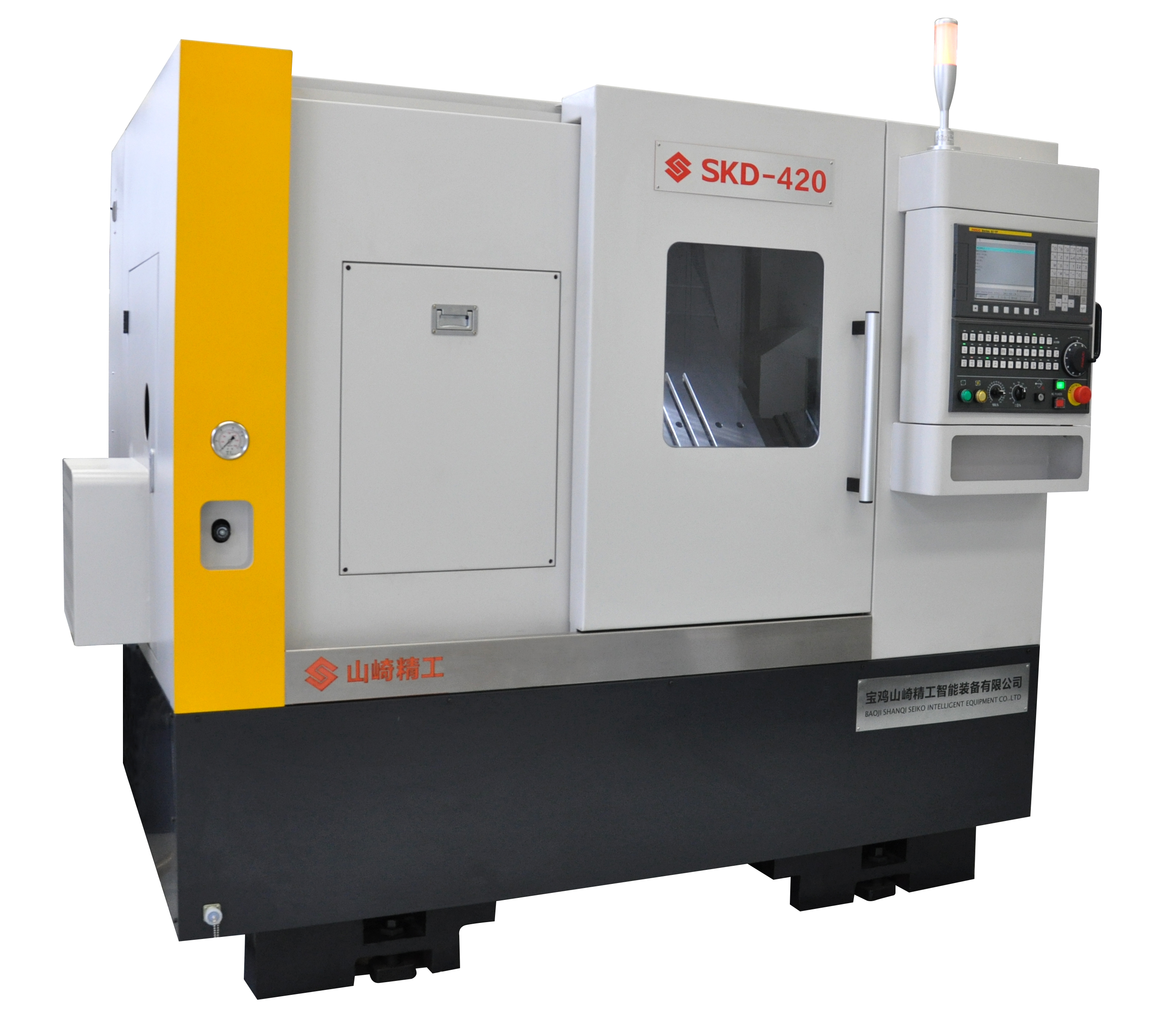

高精度斜床身數控車床 Slant bed cnc lathe

型號：SKD-420

產品時間：2025-07-14

簡要描述：整體斜床身，超大行程，多種刀具組合，多樣化組合和復合加工能力。 Integral slat bed, large stroke, multiple cutting tool combinations. Diversified combinations and composite processing capability.

產品咨詢服務電話

詳細介紹

		SKD-420
Capacity	Max.swing dia.over bed/slide daddle	Φ420mm / Φ120mm
	Max. machining diameter	Φ360mm
	Max.machining length	330mm
	Max. Bar diameter	Φ45mm
Travel	Travel of X axis	450mm
Travel	Travel of Z axis	330mm
Spindle	Power output(30min/continuous)	7.5/11 kw
	Hydraulic Chuck	6″center hollow
	Type of spindle	JIS A2-5
	Spindle bore	Φ56mm
	Spindle speed	4500 rpm
Feed	Rapid move of X axis	24000mm/min
Feed	Rapid move of Z axis	24000mm/min
Turret	Cutting tool	The row tools
Turret	Size (turning /boring)	20*20mm /Φ25mm
Accuracy	Positioning accuracy	≤±0.005mm
Accuracy	repeatability	≤±0.003mm
Other	Machine weight	3000kg
Other	Outline dimension：length×width×height	1750×970×1850mm

產品配置

Variety combinations of turret , row knife of tool rest, power unit and Y axis.
